200LB Stacks Upgrade Kit (HFT or F438 RFT)

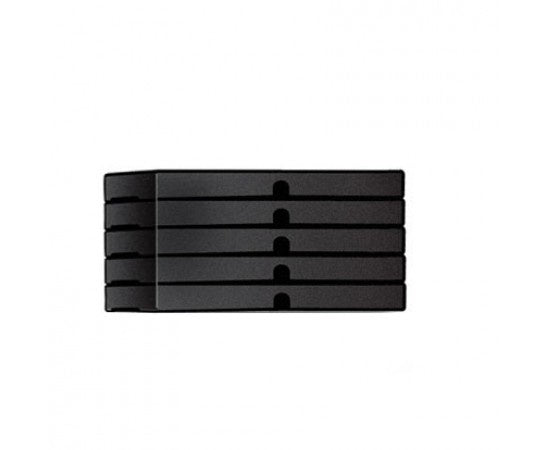

5lb Add-on Weight

Allows for increases by 5lb increments (and 2.5lbs for machines that include functional cable arms). Inter-Locks with Top Plate so that it cannot slip or fall off. Machined from solid steel (steel cannot be damaged like rubber style add-ons). Coated with a durable baked on powder coat finish. Built for both commercial and home use. Custom designed to specifically fit Bodycraft products* (some aftermarket 5lbs add-ons are not compatible with certain Bodycraft products). *Compatible with: Galena Pro, XPress, X2, X4, GL, GLX, GXP, Elite, Jones Lat and F431 Lat. *Compatible with discontinued: Strata, M300, MPress, Family XPress, GX, K1, & K2 gyms. ***NOT compatible with CFT, HFT, PFT, RFT, and Jones Functional Cable Crossover.***

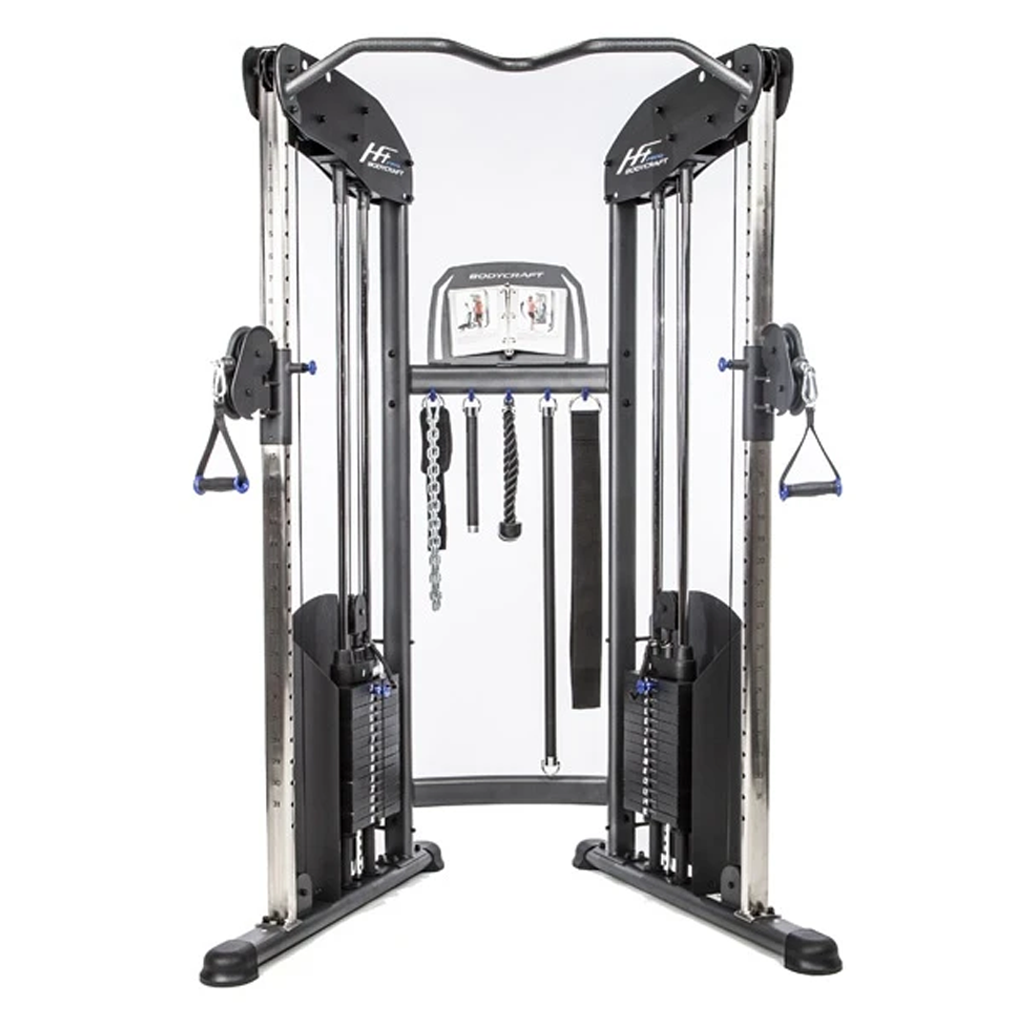

Bodycraft HFT Pro Functional Trainer

Whether the Motion is for Strength Training, Sport Specific, or Maybe it’s a Movement You Perform at Work or During Leisure Activities, the BODYCRAFT HFT PRO Allows You to Train the Way You Move. You Define the Path of Motion Allowing You to Strengthen Every Part of Your Body for the way You Want to Live. It’s that Simple. Functional Training also Improves Coordination, Balance, and Increases Core Strength.

Section

Drop element here!

FEATURES

• FRAME: Heavy-Gauge Oval Tubing W/ Laser Cut Steel Plates

• INDEPENDENT ADJUSTABLE CABLE COLUMNS: Stainless Steel W/ 31 Precision Lasered Height Positions W/ Dual Independent 180 Degree Rotational Adjustable Swivel Pulleys – 61” Vertical Travel – 55″ Width
• ACCESSORIES: Dual Contoured Single Handles, Sports Stick, Long Bar, Tricep Rope, Padded Ankle Cuff, Chin/Push-Up Assist Strap, Dual Heavy-Duty 21 Link Adjustment Chain Set, Exercise Book

• MULTI-GRIP CHIN BAR: (Wide – Classic – Narrow) Uses Include, Pull-Ups, Hanging Ab Straps, Bands, Inversion Boots, Etc.
• STABILITY: Non Skid Extra Wide Stabilizer End Caps

• AESTHETICS: Easy Install End-Caps, All Black Hardware, Updated Laser-Cut Workout Guide Plate, Blue Anodized Aluminum Selector Pins and Pop-Pins and Blue Single Handle Accents

• PAINT FINISH: Diamond Gray and Textured Black Electrostatic Powder-Coated Finish

• PULLEYS: 3.5″ Diameter, Fiberglass Impregnated Nylon Pulleys with Sealed Maintenance-Free Precision Ball Bearings.

• CABLES: The Most Flexible Nylon Coated, 7 X 19 Strand Aircraft Cable Rated at Over 2000 lbs. Tensile Strength.

• CABLE TRAVEL: 80″ (Using One Side)

• WEIGHT STACKS: Dual 150 LBS Weight Stacks with Magnetic Selector Pins W/ Lanyard. 2:1 Ratio. Optional Upgrade to 200 LBS Each.

• GUIDE RODS: Heavy Duty Chrome Plated

• DIMENSIONS: 40″L x 55″W x 82″H BOXED: (Box 1: 81.5″L x 18″W x 7″H) (Weight: 116 LBS) (Box 2: 50″L x 24″W x 9″H) (Weight: 143LBS)

• WEIGHT: (Assembled) 540 LBS (640 LBS W/ Upgraded 200 LB Stacks)


SPECIFICATIONS

• Dimensions: 40″ L x 55″ W x 82″ H CLICK HERE for Dimensions PDF.

• Frame: Heavy-Gauge Plate and Oval Steel Tubing.
• Paint Finish: The Diamond Gray and Textured Black electrostatic powder-coated finish evenly cover all surfaces, for a tough and long-lasting finish.

• Pulleys: 3.5″ diameter, fiberglass impregnated nylon pulleys with sealed maintenance-free precision ball bearings.

• Cable: The most flexible nylon coated, 7 X 19 strand aircraft cable rated at over 2000 lbs. tensile strength.
• Weight Stack: Dual 150lbs. Weight Stacks with Magnetic Selector Pins. The weight stack to user weight ratio is 2:1. It can be upgraded to 200lbs each.

• Guide Rods / Pulley Upright Tubes: Heavy Duty Chrome Plated tubular steel. The Pulley Upright Tubes are laser etched with a numeric index.


WARRANTY

• RESIDENTIAL: Frame: Life / Parts: Life

• COMMERCIAL: Frame: 10 Years / Parts: 2 Years
• * Excludes normal wear and tear.

LIMITLESS TRAINING

The HFT PRO’S Dual Stainless Steel Cable Columns Feature Independent 180 Degree Rotational Adjustable Swivel Pulleys with 31 Precision Lasered Height Positions, 61” of Vertical Travel, 80“ of Cable Travel, (Single Side) and have an Effective Width of 55” Allowing You to Perform Limitless Functional Exercises.

ALL THE ACCESSORIES

The HFT PRO Comes with all the Functional Accessories You Will Ever Need. We Loaded this Machine with Dual Contoured Single Handles, Sports Stick, Long Bar, Tricep Rope, Padded Ankle Cuff, Chin/Push-Up Assist Strap, Dual Heavy-Duty 21 Link Adjustment Chain Set, and Exercise Book.

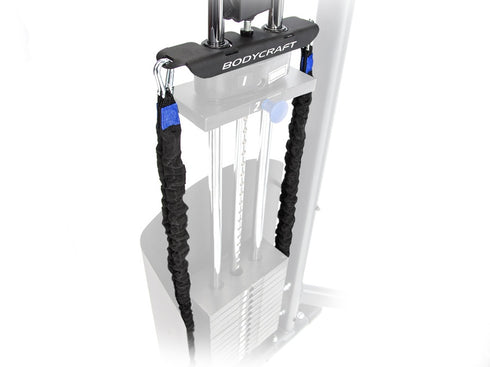

HERE COMES THE SPEED

The OPTIONAL Speed Trainer takes your HFT PRO to the Next Level! Adding the Speed Trainer Allows You to Perform High Speed Exercises such as Boxing, Full Intensity Golf Swings, or Intense Movements such as Power Cleans on the HFT PRO without the Cables and Weight Stack Temporarily Losing Tension. The Speed Trainer Offers You a Brand New Way to Train, Keeping You Motivated while Increasing Your Strength, Power, and Gains.

MULTI-GRIP CHIN BAR

Offering 3 Different Grip Positions (Wide - Classic - Narrow) the HFT Chin/Pull-Up Bar Allows You to Perform Many Types of Upper Body and Core Exercises

BROCHURES & MANUALS

Dimensions:

HFT PRO Functional Trainer Dimensions

Owners Manuals:

HFT PRO Owners Manual

WP-50 50 Lb. add-on Stack

Allows you to upgrade your 150lb weight stack by 50lbs, for a total of 200lbs. NOTE: You cannot upgrade from 200lbs to 250lbs with this add-on Compatible with CFT, Galena Pro, XPress Pro, GL, GLX, and GXP Gyms Also for the HFT Functional Trainer (Requires 2, 1 for each stack)
