LEARN MOREFrame: Link/Omega Series: 2” x 4” and 1-1/2” x 3” 11 gauge (.120 wall) structural steel tube with 3/8” and 1/4” thick steel plate. Mounting plates with rubber feet protect floor and prevent the machine from sliding. Fusion/FZ Series: 1-3/4″ x 4″ flat oval tube with 3/8″ and 1/4″ thick steel plate. Frame tubes are bent with the use of an inside mandrel or cut and mig welded to ensure maximum structural integrity.
Finish: Abrasive blasted and/or chemically treated frames are electrostatically powder coated ensuring maximum adhesion and durability.
Pivot Points: Sealed bearings and oil impregnated bronze bushings operate on solid shafts to ensure a smooth movement and tight fit
Cams: Laser cut from 3/8” steel plate and offer starting point adjustment on applicable machines.
Weight Stack: Precision machined solid steel weight plates with individual bushings travel on solid, chromed, guide rods to ensure ultra smooth operation. Heavy rubber suspension bumpers are used to absorb and reduce shock.
Foot Platforms: 3/16” thick powder coated steel diamond plate to avoid slipping.
Pulleys: Glass reinforced nylon operating on precision steel ball bearings.
Cables: Nylon coated, lubricated, mil. spec. cable. 2000 lb. tensile strength. Pivoting cable ends with oil-impregnated bronze bushings promote long cable life.
Upholstery: Contoured pads with lumbar support make a comfortable and well supported workout. Pads are double stitched and handcrafted from the finest materials available.
Seat adjustments: Adjustable seats are gas assisted and all telescoping pad adjustments use nylon sleeves to make Batca seat adjustments smooth and effortless.
Shroud: Formed and powder coated steel weight stack guard is standard.
Handgrips: Ergonomically molded handgrips provide a comfortable, and non-absorbing grip.
Frame | 10 Years |
Moving Parts | 3 Years |
Cables, Belts, and Other Parts | 1 Years |
Upholstery & Paint | 6 Months |

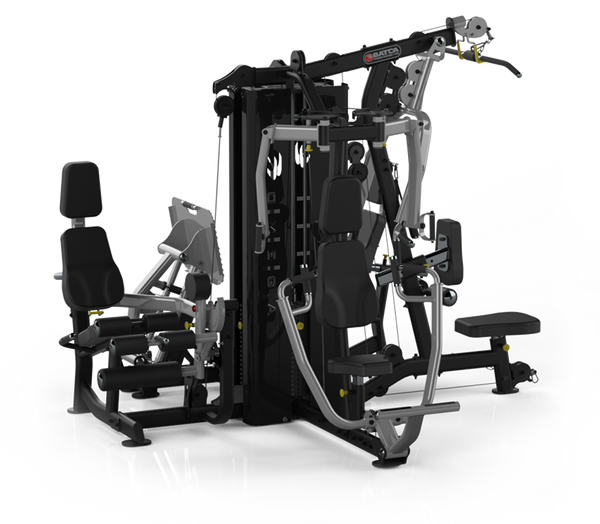

This is the leg press station for the Omega 4 Series. This leg press is only compatible with the Omega 4 series and must be purchased together. For stand alone leg press stations please browse the website or contact the store for help.
